A |
| 技術參數Specifications 使用線數(Hole count): 3 4 6 9 16 溫度范圍（Temperature range): -25℃～85℃ 額定電壓（Rated voltage):300V. AC/DC 額定電流（Rated current): 5A |
B |
|
端子 Terminal
型號 Type | 圖號 Pic | 壓線范圍 Wire Range | 厚度 Thickness | 材質 Material | 尺寸 Dimension (mm) | 對照表 Comparison No. | 備注 Remark | |||
AWG# | mm2 | L | W | E | ||||||
DJ613-2.3 | A | 18~16 | 0.7~1.2 | 0.3 | 黃銅 | 25.2 | 2.3 | 7.3 | 插頭 | |
DJ621-2.3 | B | 18~16 | 0.7~1.2 | 0.3 | 黃銅 | 16.3 | 3.0 | 7.3 | 插座 | |
塑料件Plastic parts
線數 Hole count | 插頭 Plug for male terminal | 插座 Receptacle for female terminal |
3 | DJ7031Y-2.3-11
| DJ7031Y-2.3-21
|
4 | DJ7041Y-2.3-11
| DJ7041Y-2.3-21
|
6 | DJ7061Y-2.3-11
| DJ7061Y-2.3-21
|
9 | DJ7091Y-2.3-11
| DJ7091Y-2.3-21
|
16 | DJ7161Y-2.3-11
| DJ7161Y-2.3-21
|

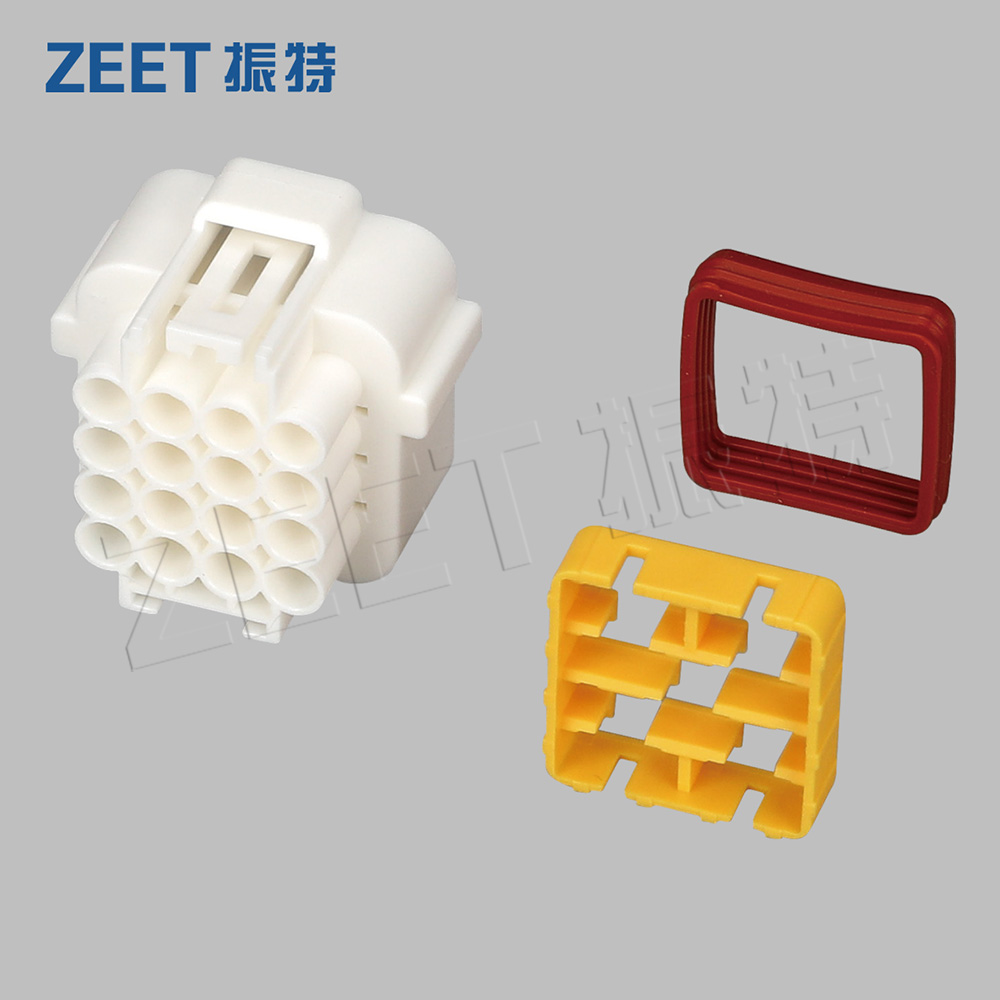

產品型號(Product spec)：DJ7161Y-2.3-21
使用線數(Hole count)：16
基本尺寸(Basic sizes)：L=25.5，W=31，H=34.8
材質(Material quality)：PA66/PAV0/POM
顏色(Colour)：白色/黑色
特性(Characteristic)：防水
