A |
| 技術參數Specifications 使用線數(Hole count): 2 3 6 溫度范圍（Temperature range): -25℃～85℃ 額定電壓（Rated voltage):300V. AC/DC 額定電流（Rated current): 5A
|
B |
|
端子 Terminal
型號 Type | 圖號 Pic | 壓線范圍 Wire Range | 厚度 Thickness | 材質 Material | 尺寸 Dimension (mm) | 對照表 Comparison No. | 備注 Remark | |||
AWG# | mm2 | L | W | E | ||||||

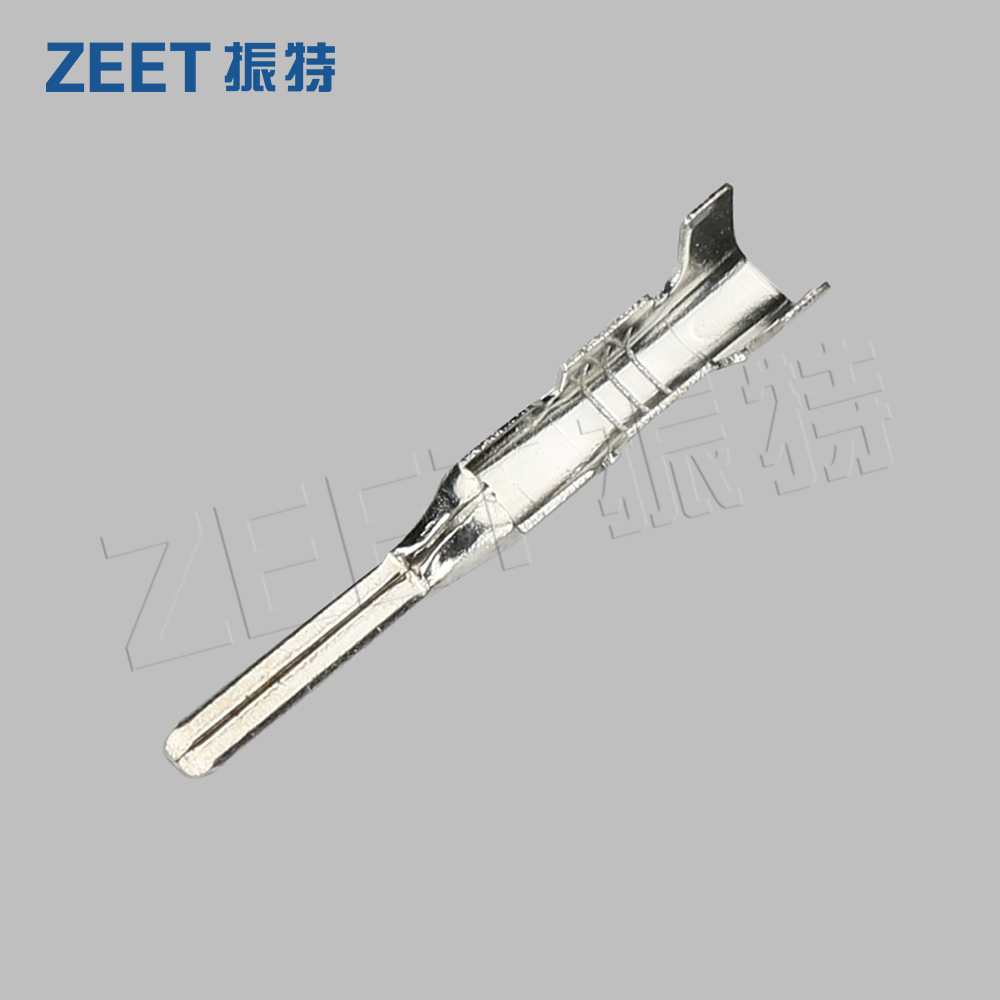

DJ611-1.8A/BL8 | A | 22~20 | 0.3~0.5 | 0.3 | 黃銅 | 23.1 | 1.8 | 7.2 | 插頭 | |

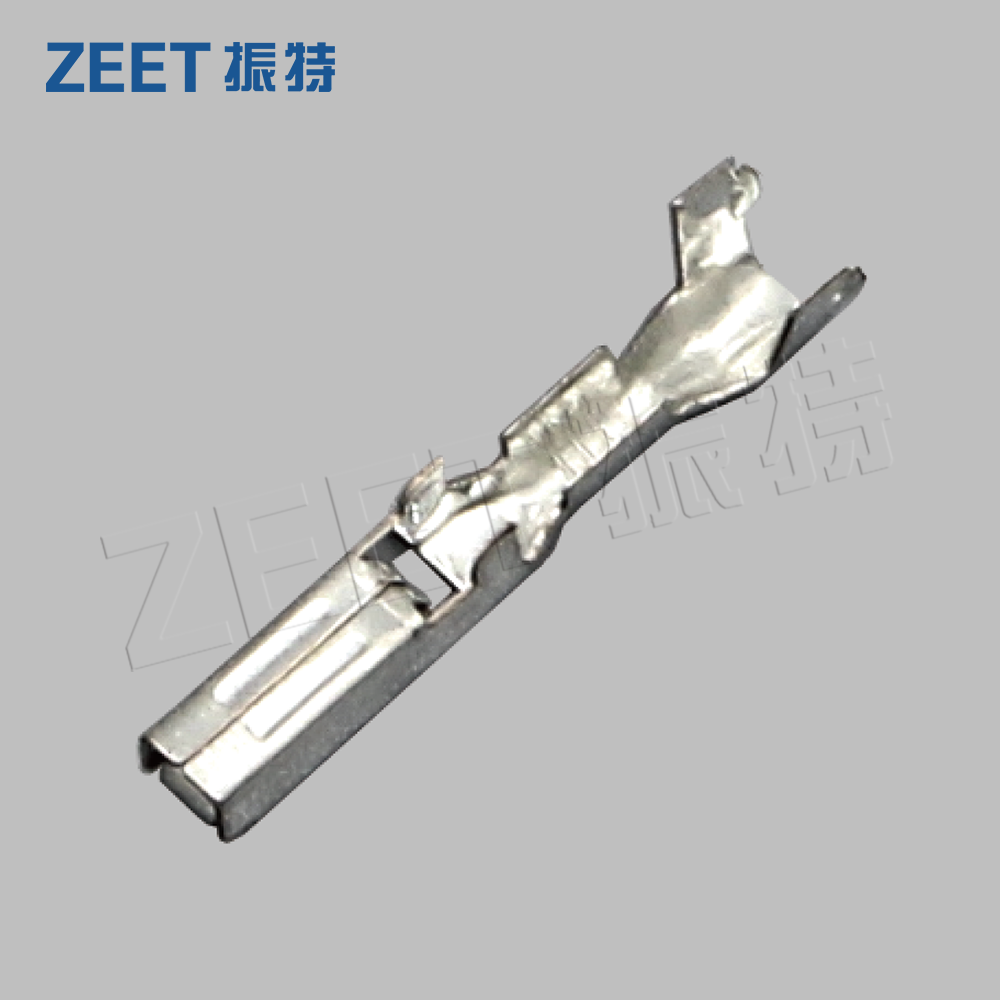

DJ621-1.8A | B | 22~20 | 0.3~0.5 | 0.25 | 磷銅 | 19.1 | 2.7 | 7.9 | 插座 | |
塑料件Plastic parts
線數 Hole count | 插頭 Plug for male terminal | 插座 Receptacle for female terminal |

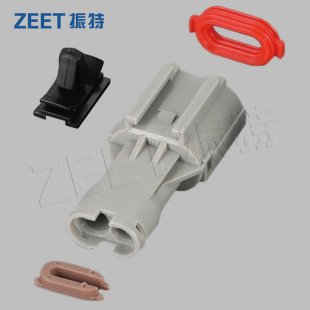

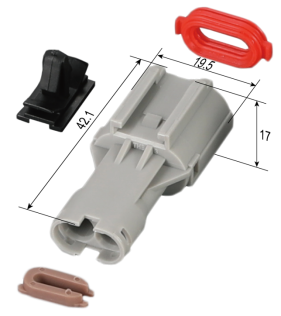

2 | DJ7021-1.8-11
| DJ7021-1.8-21
|

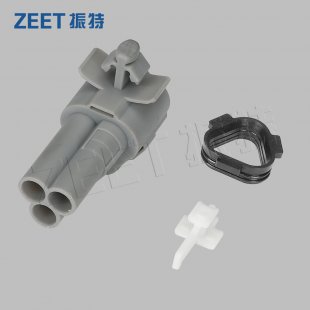

3 | DJ7031-1.8-11
| |

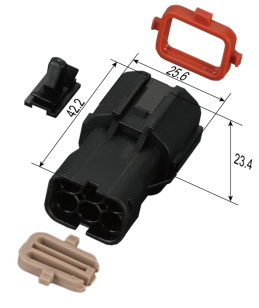

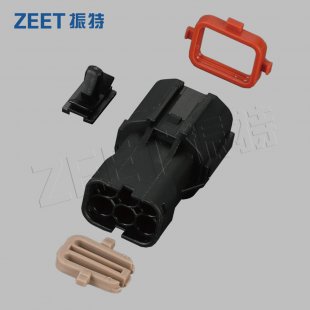

6 | DJ7061-1.8-11
| DJ7061-1.8-21
|
使用線數(Hole count): 2 3 6
溫度范圍（Temperature range):-25℃～85℃
額定電壓（Rated voltage):300V. AC/DC
額定電流（Rated current): 5A
