A |
| 技術參數Specifications 使用線號(Hole count): 2 3 4 5 6 7 9 溫度范圍（Temperature range): -25℃～85℃ 額定電壓（Rated voltage):250V. AC/DC 額定電流（Rated current): 3A |
B | |

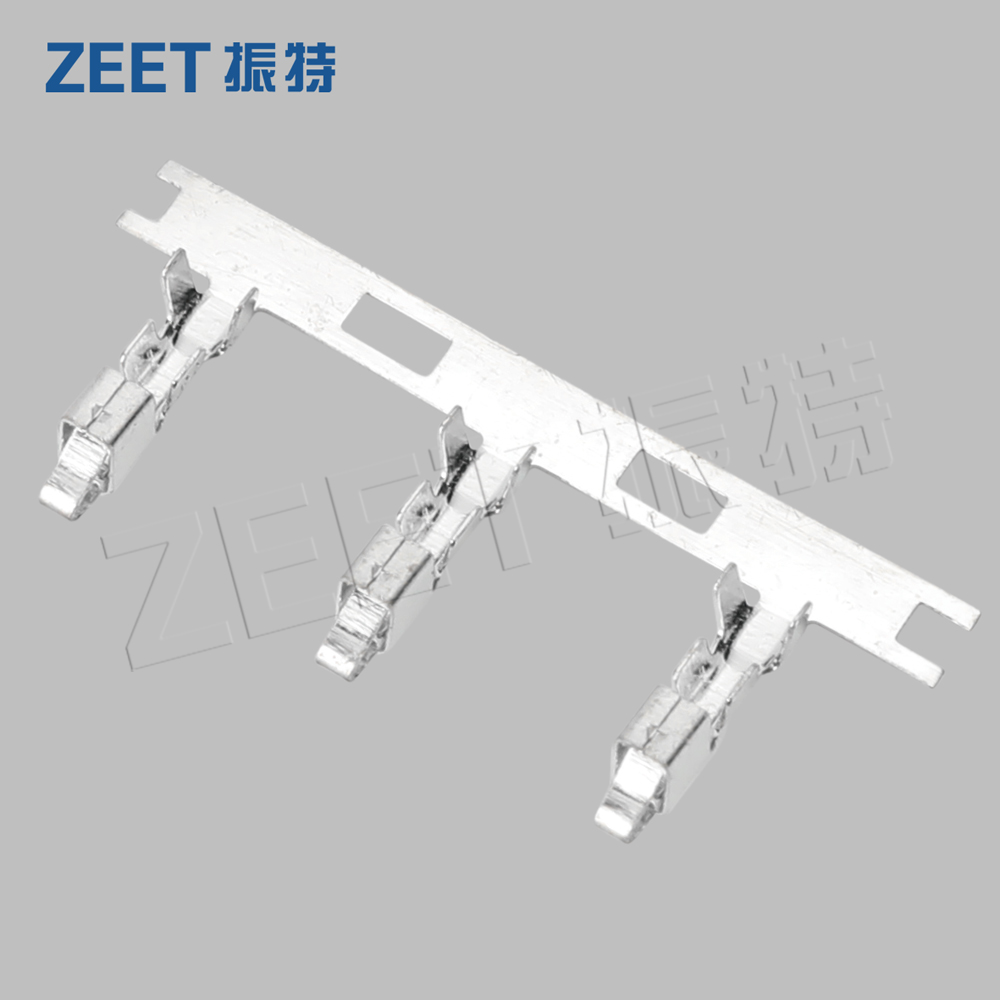

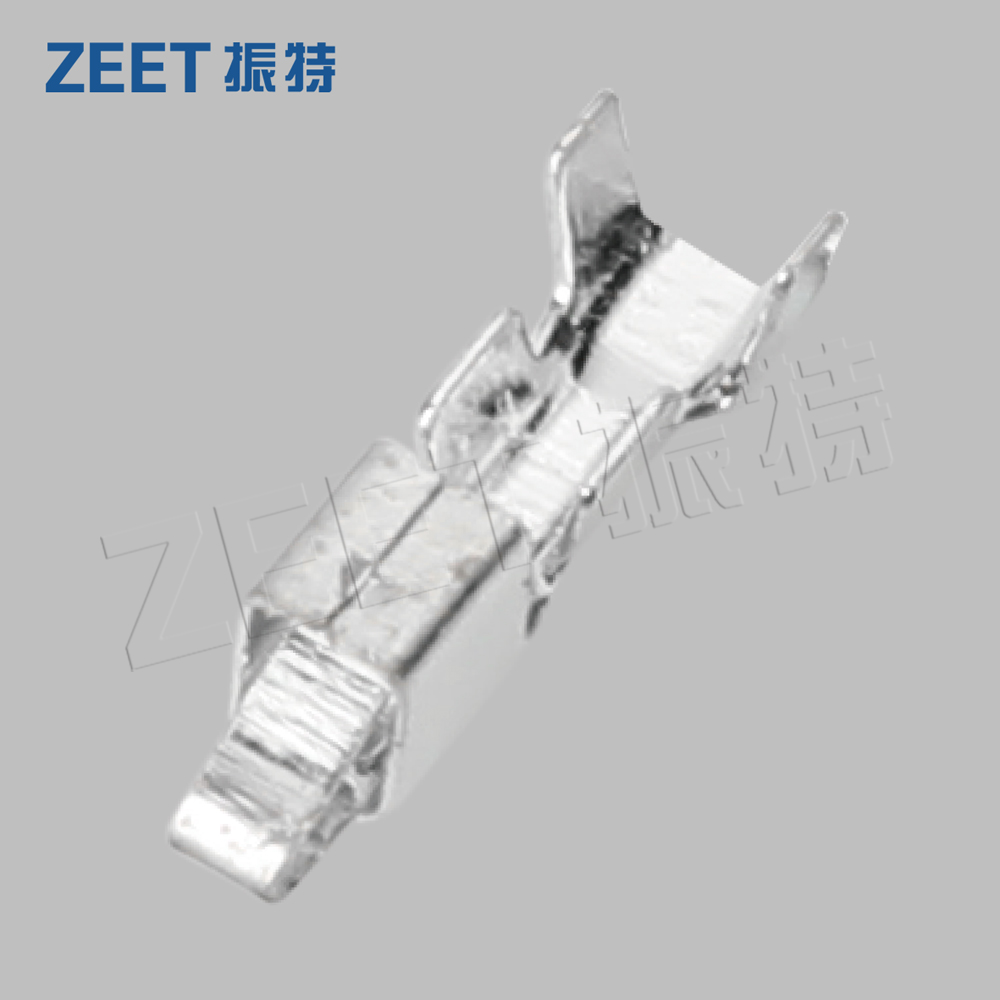

端子 Terminal
型號 Type | 圖號 Pic | 壓線范圍 Wire Range | 厚度 Thickness | 材質 Material | 尺寸 Dimension (mm) | 對照表 Comparison No. | 備注 Remark | |||
AWG# | mm2 | L | W | E | ||||||
SM-A | A | 22~18 | 0.3~0.75 | 0.25 | 磷銅 | 16 | 1 | 3.6 | 插頭 | |
SM-Y | B | 22~18 | 0.3~0.75 | 0.2 | 磷銅 | 9 | 1.2 | 4.0 | 插座 | |
塑料件Plastic parts
線數 Hole count | 插頭 Plug for male terminal | 插座 Receptacle for female terminal |
2 | SM-2A | SM-2Y
|
2 | SM-2A
| SM-2Y 無翼
|
3 | SM-3A
| SM-3Y
|
4 | SM-4A
| SM-4Y
|
5 | SM-5A
| SM-5Y
|
6 | SM-6A | SM-6Y
|
7 | SM-7A
| SM-7Y
|
9 | SM-9A
| SM-9Y
|
使用線號(Hole count): 2 3 4 5 6 7 9
溫度范圍（Temperature range): -25℃～85℃
額定電壓（Rated voltage):250V. AC/DC
額定電流（Rated current): 3A
