A |
| 技術參數Specifications 使用線數(Hole count): 1 溫度范圍（Temperature range): -25℃～85℃ 額定電壓（Rated voltage):300V. AC/DC 額定電流（Rated current):
|
B |
| |
端子 Terminal
型號 Type | 圖號 Pic | 壓線范圍 Wire Range | 厚度 Thickness | 材質 Material | 尺寸 Dimension (mm) | 對照表 Comparison No. | 備注 Remark | |||
AWG# | mm2 | L | W | E | ||||||
ZTT217-4A | A | 20~17 | 0.5~1.0 | 0.4 | 磷銅 | 20.2 | 3.95 | 6.2 | 插頭護套 | |
ZTT217-4B | 17~15 | 1.0~1.5 | 0.4 | 磷銅 | 20.2 | 3.95 | 6.2 | 插頭護套 | ||
ZTT227-4A | B | 20~17 | 0.5~1.0 | 0.4 | 磷銅 | 20.3 | 4.7 | 7.0 | 插座護套 | |
ZTT227-4B | 17~15 | 1.0~1.5 | 0.4 | 磷銅 | 20.3 | 4.7 | 7.0 | 插座護套 | ||

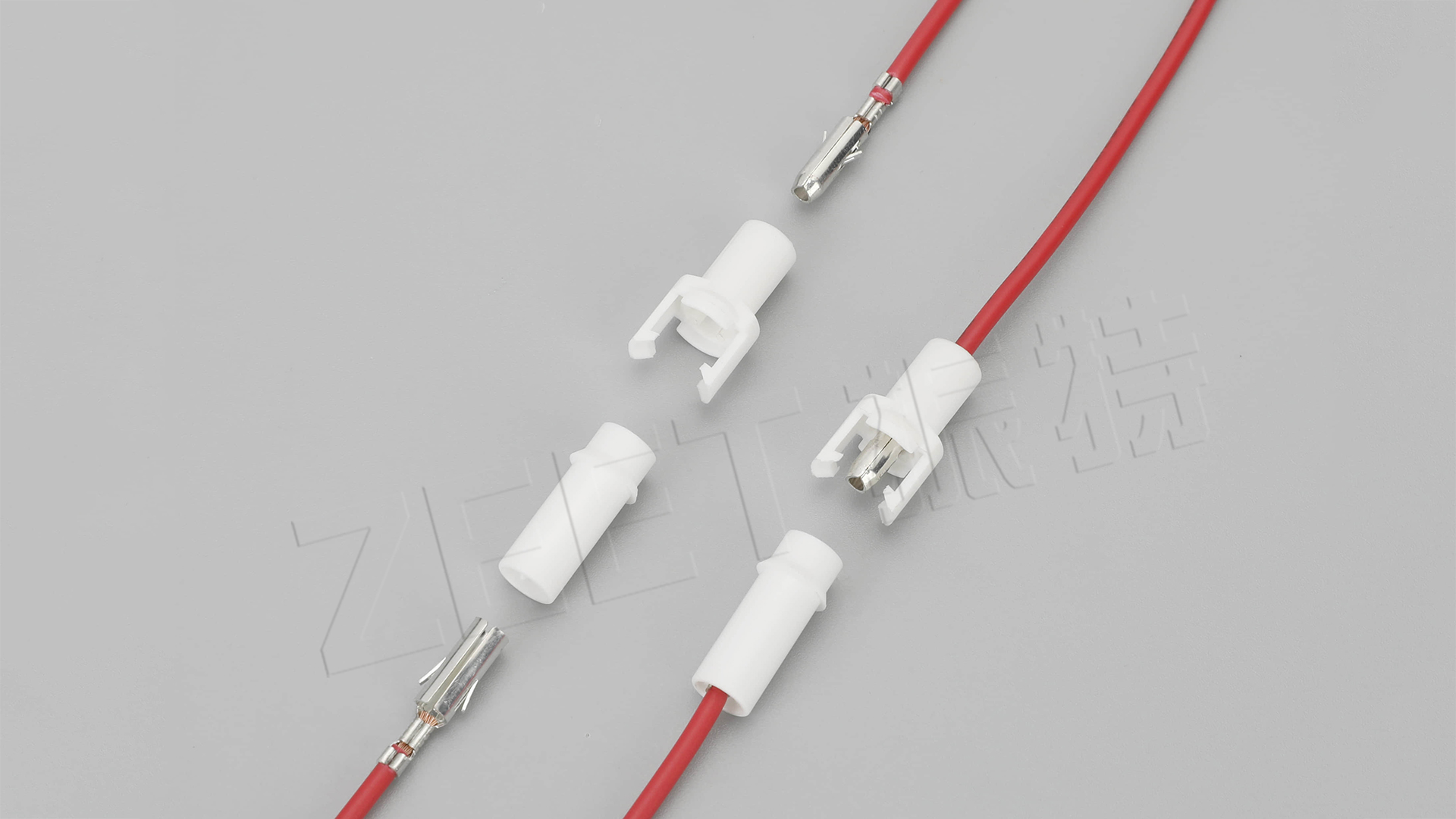

塑料件Plastic parts
線數 Hole count | 插頭護套 Plug Housing | 插座護套 Receptacle Housing |
1 | ZT2146
| ZT2145
|

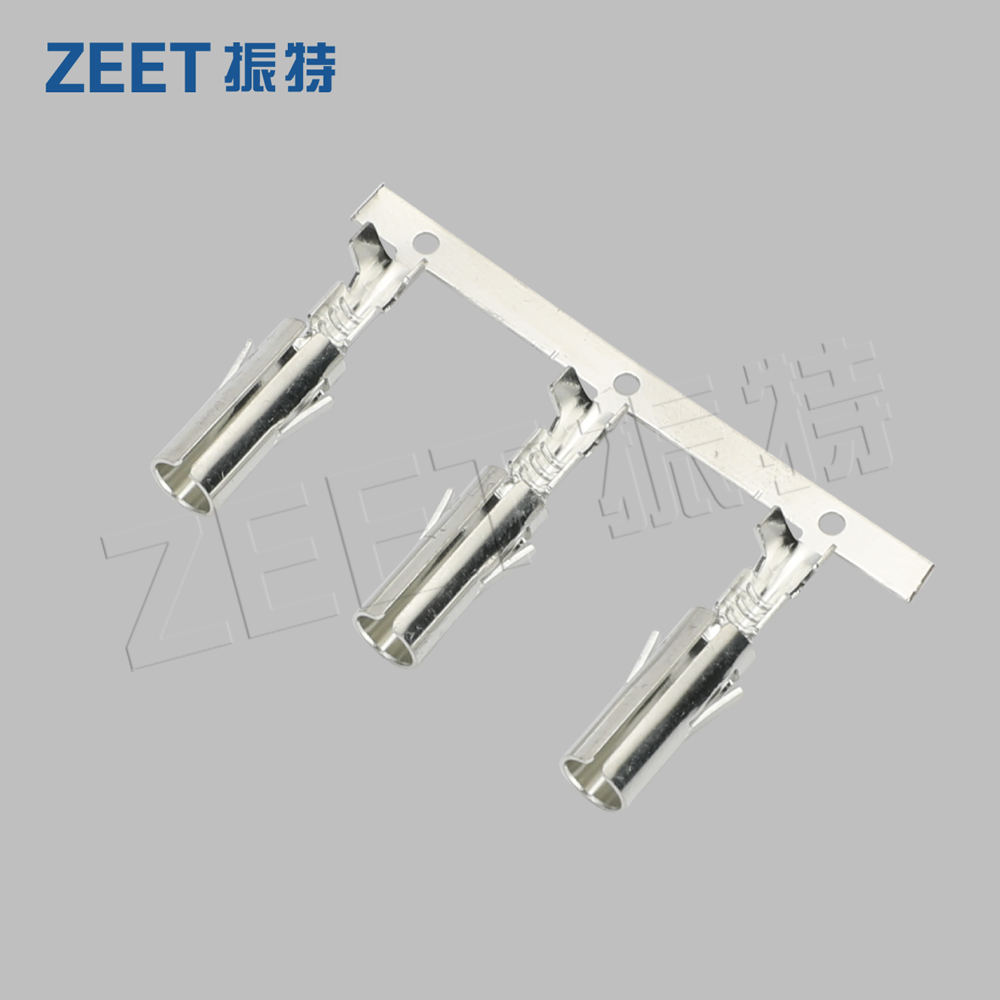

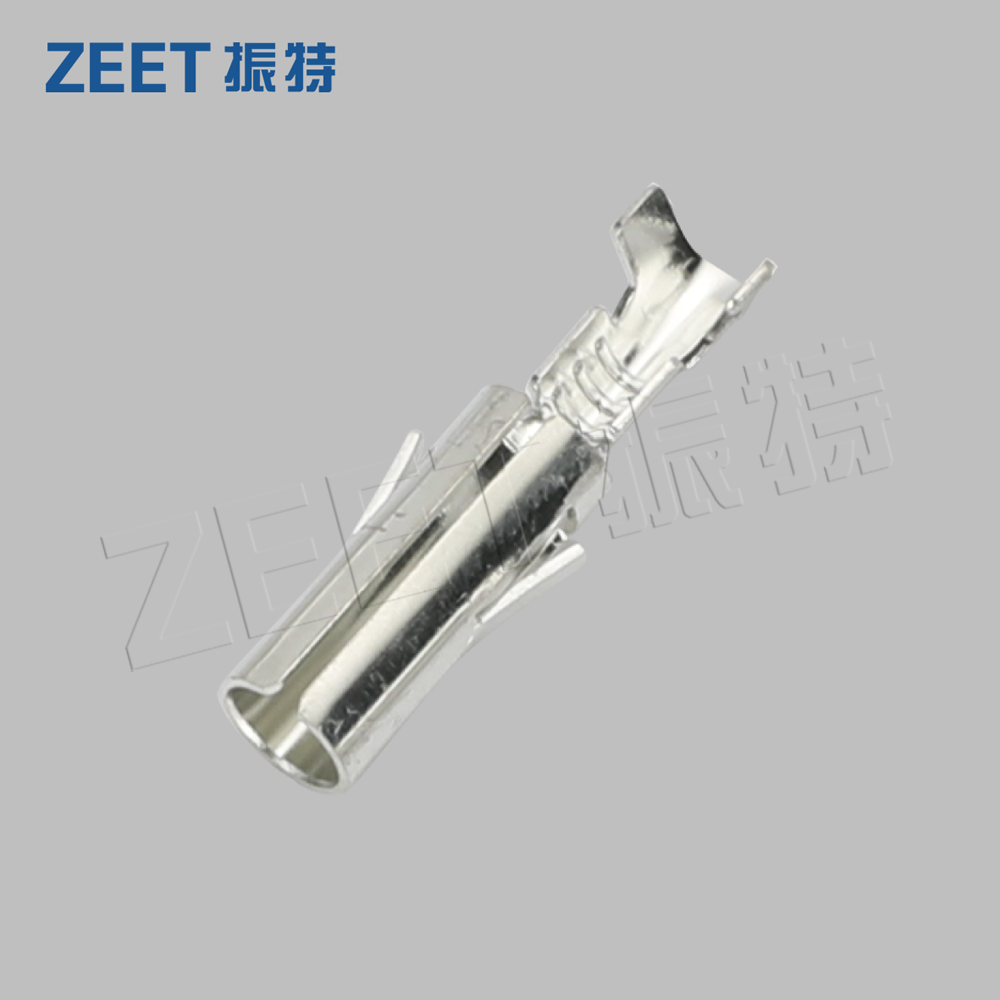

產品型號(Product spec)：ZTT227-4B
壓線范圍(Wire Range)：1.0mm2~1.5mm2
材質(Material quality)：磷銅
厚度(Thickness)：0.4mm
