A |
| 技術參數Specifications 使用線數(Hole count): 3 4 溫度范圍（Temperature range): -25℃～85℃ 額定電壓（Rated voltage):300V. AC/DC 額定電流（Rated current): 5A |
B |
|
端子 Terminal
型號 Type | 圖號 Pic | 壓線范圍 Wire Range | 厚度 Thickness | 材質 Material | 尺寸 Dimension (mm) | 對照表 Comparison No. | 備注 Remark | |||
AWG# | mm2 | L | W | E | ||||||
DJ611-D2 | A | 20~17 | 0.5~1.0 | 0.4 | 黃銅 | 19.6 | 1.8 | 5.2 | 插頭 | |
DJ621-D2*0.5A | B | 20~17 | 0.5~1.0 | 0.25 | 磷銅 | 12 | 3.1 | 5.8 | 插座 | |
塑料件Plastic parts
線數 Hole count | 插頭 Plug for male terminal | 插座 Receptacle for female terminal |
3 | DJ7031-2-11
| DJ7031-2-21
|
4 | DJ7041-2-21
|

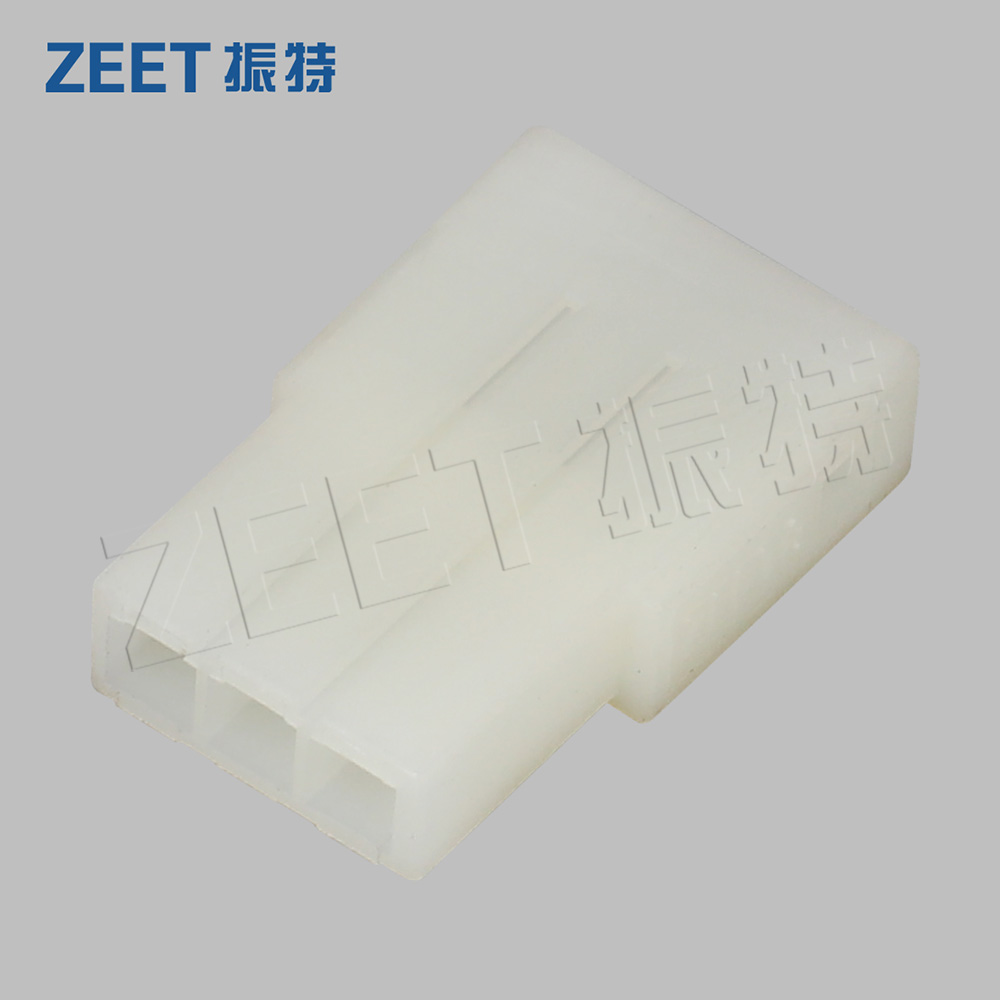

產品型號(Product spec)：DJ7031-2-11
使用線數(Hole count)：3
基本尺寸(Basic sizes)：L=25.5，W=16，H=6.6
材質(Material quality)：PA66/PAV0
顏色(Colour)：白色/黑色/等
