A |
| 技術參數Specifications 使用線數(Hole count): 2 3 4 6 9 12 溫度范圍（Temperature range): -25℃～85℃ 額定電壓（Rated voltage):300V. AC/DC 額定電流（Rated current): 5A |
B |
|
端子 Terminal
型號 Type | 圖號 Pic | 壓線范圍 Wire Range | 厚度 Thickness | 材質 Material | 尺寸 Dimension (mm) | 對照表 Comparison No. | 備注 Remark | |||
AWG# | mm2 | L | W | E | ||||||
DJ611-2.8AS | A | 22~17 | 0.3~1.0 | 0.5 | 黃銅 | 21 | 2.8 | 7 | 插頭 | |
DJ611-2.8A | 20~17 | 0.5~1.0 | 0.5 | 黃銅 | 21 | 2.8 | 7 | 插頭 | ||
DJ621-A2.8A | B | 20~17 | 0.5~1.0 | 0.25 | 磷銅 | 16 | 3.95 | 6.8 | 插座 | |
塑料件Plastic parts
線數 Hole count | 插頭 Plug for male terminal | 插座 Receptacle for female terminal |
2 | DJ7021-2.8-11
| DJ7021-2.8-21
|
3 | DJ7031-2.8-11
| DJ7031-2.8-21
|
3 | DJ7031L-2.8-11
| DJ7031L-2.8-21
|
4 | DJ7041-2.8-11
| DJ7041-2.8-21
|
6 | DJ7061-2.8-11
| DJ7061-2.8-21
|
6 | DJ7061L-2.8-11
| DJ7061-2.8-21
|
9 | DJ7091-2.8-11
| DJ7091-2.8-21
|
12 | DJ7121-2.8-11
| DJ7121-2.8-21
|

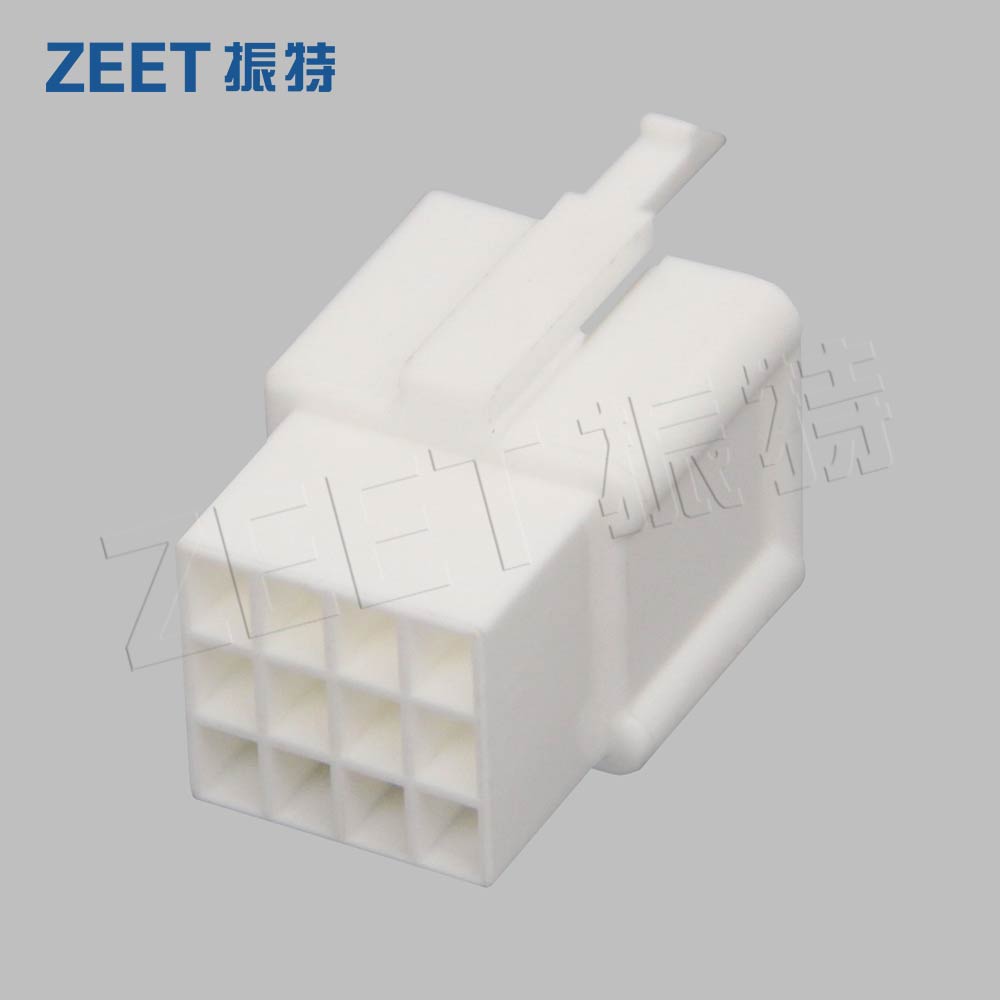

產品型號(Product spec)：DJ7121-2.8-11
使用線數(Hole count)：12
基本尺寸(Basic sizes)：L=30.5，W=21.6，H=19.6
材質(Material quality)：PA V0
顏色(Colour)：白色
